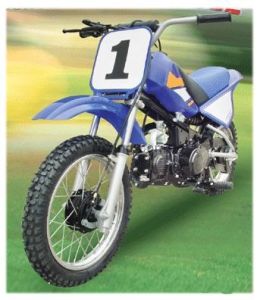

PY90 MAIN TECHNICAL DATA
Engine Type: 4-Strokes, AirCooled Fully-Automatic
Transmission System: Chain Drive
Bore x Stroke(mm) : 47x49.5
Piston Displacement: 86
Maximum Power(kw/r/min) : 4/7500-8000
Maximum Torque(N. m. /r/min) : 5.6/5600-6000
Starting System: Kick Starter
Transmission: Single Speed Autometic
Seat Height(mm) : 630±10
Min Turning Radius(mm) : 1500
Ground Clearance: 150
Brake(Front/Rear) : Drum/Drum
Tyre, Fromt: 2.5-14-4PR
Tyre, Rear: 3.0-12-4PR
Ignition Type: C. D. I
Fuel Tank Capacity(L) : 4.9
Front Suspension: Telescopic Fork
Rear Suspension: Unit Swing None
Parking Brake: None
Battery: None
Loading: 40'=150boxes
Max Load Capacity(kg) : 65
Engine Oil Capacity(L) : 0.6
Gear Oil Capacity(L) : 0.05
Dry Weight(kg) : 60
Rider Capacity: 1 Person
Wheel Base: 1060
Overall Height(mm) : 880
Lubrication: Auto
Overall Length(mm) : 1550
Overall Width(mm) : 640
Compression Ration: 8.5:1
Cylinder Arrangement: Single Cylinder
