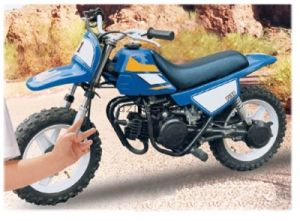

PY50 MAIN TECHNICAL DATA
Engine Type: Single Cylinder 2-Strokes, AirCooled
Transmission System: Shaft Drive
Bore x Stroke(mm) : 40x39.2
Piston Displacement: 49
Maximum Power(kw/r/min) : 1.98/5500
Maximum Torque(N. m. /r/min) : 3.7/4500
Starting System: Kick Starter
Transmission: Non-grade shift
Seat Height(mm) : 480±10
Min Turning Radius(mm) : 1000
Ground Clearance: 100
Brake(Front/Rear) : Drum/Drum
Tyre, Fromt: 2.50-10-4PR
Tyre, Rear: 2.50-10-4PR
Ignition Type: C. D. I
Fuel Tank Capacity(L) : 2
Front Suspension: Telescopic Fork
Rear Suspension: Unit Swing
Parking Brake: None
Battery: None
Loading: 40'single=272boxes.40'dual=320boxes
Max. Load Capacity(kg) : 40
Engine Oil Capacity(L) : 0.3
Gear Oil Capacity(L) : 0.05
Dry Weight(kg) : 39
Rider Capacity: 1 Person
Wheel Base: 860
Overall Height(mm) : 720
Lubrication: Auto
Overall Length(mm) : 1250
Overall Width(mm) : 580
Compression Ration: 6.0:1
Cylinder Arrangement: Single Cylinder
